Cantilever Racking
For Long Profiles
——
Cantilever shelves represent a pivotal innovation in storage solutions, renowned for their exceptional adaptability and efficiency. These robust storage systems are meticulously designed to accommodate a diverse range of items, including long materials, ring materials, plates, pipes, and irregularly shaped goods. Available in both single-sided and double-sided configurations, cantilever shelves boast a superior structural stability, impressive load-bearing capacity, and optimized space utilization. Constructed from high-quality H-shaped steel or cold-rolled steel for the columns, and utilizing square tubes, cold-rolled steel, or H-shaped steel for the cantilevers, these racks ensure durability and reliability. The cantilevers are expertly inserted or bolted between columns, complemented by a stable base, which is also crafted from cold-rolled or H-shaped steel.
Cantilever Rack · Warehouse Storage Rack · Made In China

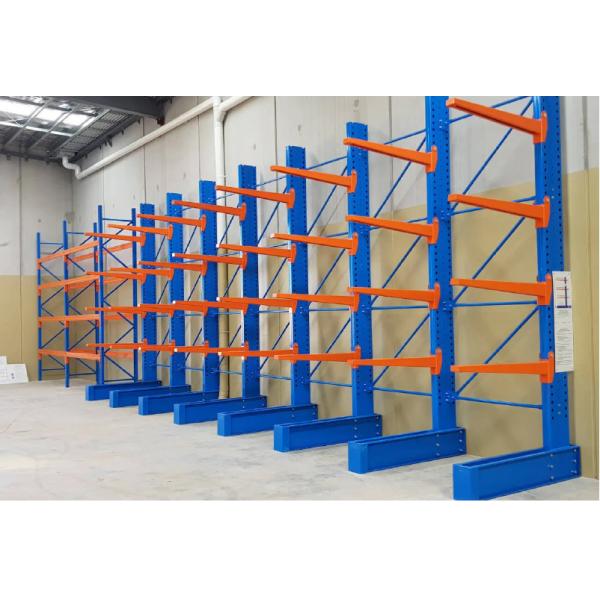

Single Sided

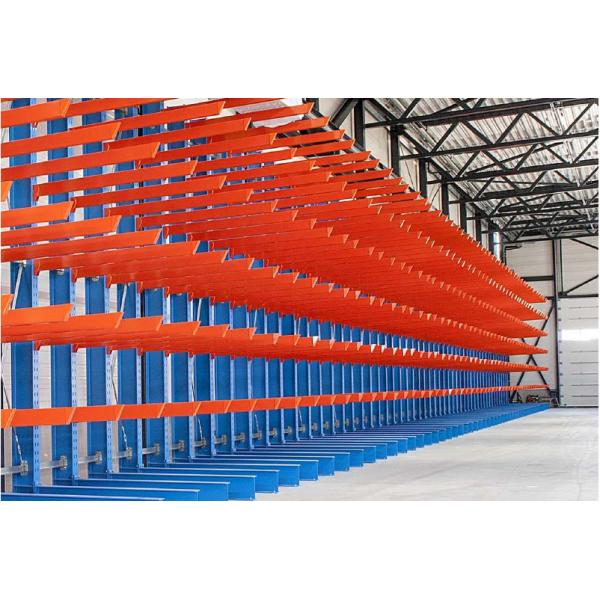

Double Sided
Cantilever Rack · Warehouse Storage Rack · Made In China

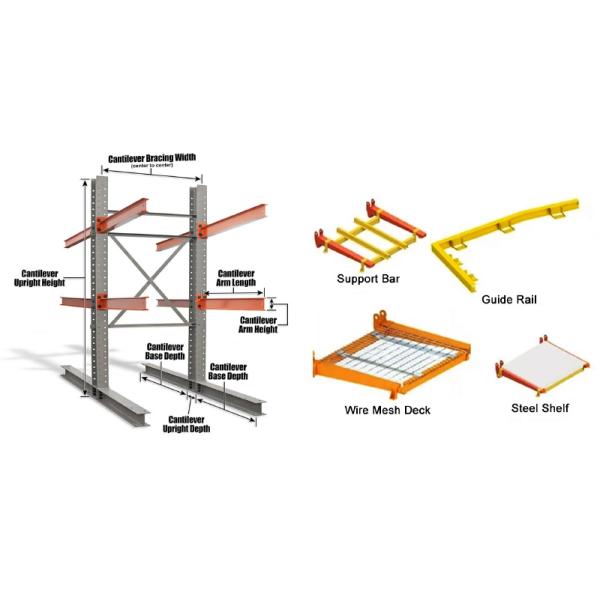

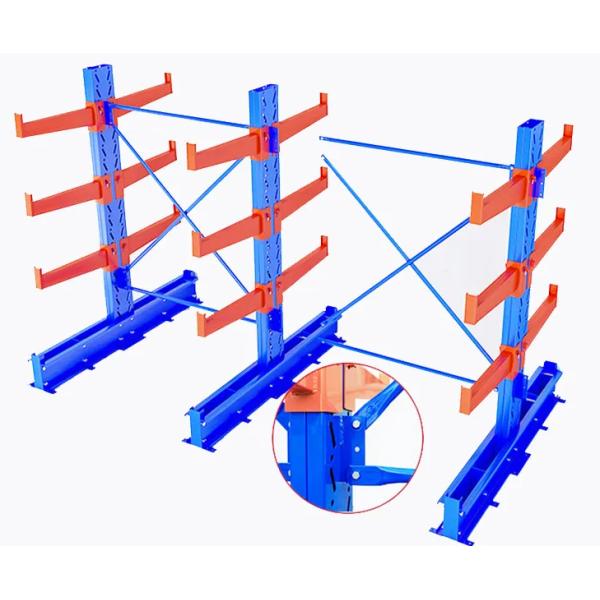

Structural Principles
—
Benefits
Unobstructed access: The lack of front columns allows for easy loading and unloading of long items using forklifts or other equipment.
Versatility: Cantilever racks can be configured in various ways to accommodate different sized items and storage requirements. You can have single-sided racks placed against walls or double-sided racks for maximized storage capacity.
Customizability: The arm levels can be adjusted along the uprights to fit the specific lengths of the items you're storing.

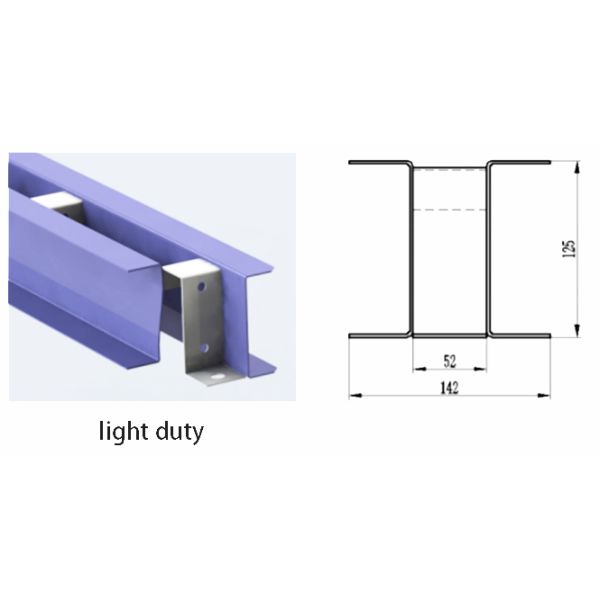

Column

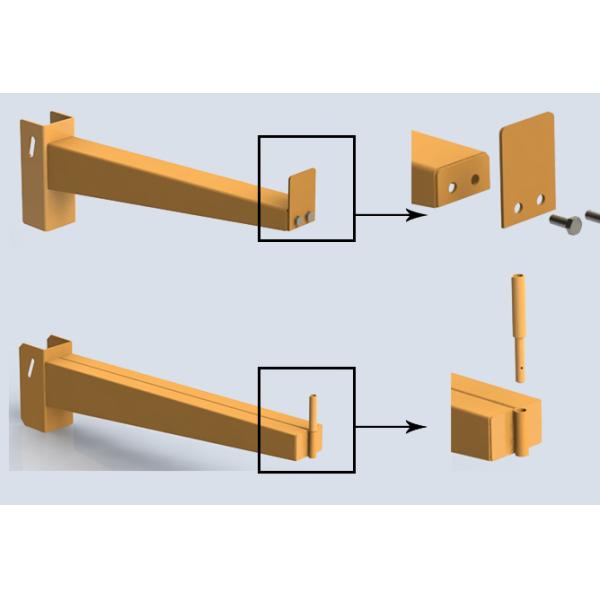

Arm
Base
Assemble The Column And Base
Cantilever Rack · Warehouse Storage Rack · Made In China
Specifications
—
| Larm[in] | Static Capacity[lbs] Cantilever Column Per Side |
| 36'' | 40'' | 48'' | 60'' |
| Hcolumn | W9.7 |
| 8' | 14,000 | 14,000 | 14,000 | 14,000 |
| 12' | 13,000 | 13,000 | 13,000 | 12,000 |
| 16' | 12,000 | 12,000 | 12,000 | 10,000 |
| 20' | 12,000 | 12,000 | 11,000 | 8,300 |
| 24' | 8,800 | 6,600 | - | - |
| 28' | 2,720 | - | - | - |
| Column height can be up to 32' |
| Larm[in] | Cantilever Arm Static Capacity [lbs] |
| 36'' | 40'' | 48'' | 60'' |
| Arm 4'' | 2,600 | 2,600 | 2,300 | - |
| Arm 4.7'' | 3,300 | 3,300 | 3,300 | 2,900 |
| Arm 5.5'' | 3,900 | 3,900 | 3,900 | 3,900 |
Cantilever Rack · Warehouse Storage Rack · Made In China
Product Advantage
——
1).Cantilever racking system is optimal for the storage of long-shaped and bulky materials,profiles,pipe,timber and moulding etc;
2).Constructed of structural H steel and traditionsl roll-formed style both are avaliable
3).Single and double sided configuration available;
4).Different column and arm sizes available to suit various loading requirement;
5).Bolted arm and base connection;
6).Surface treatment:Spray-painting
7).Packing:Neutral paper box or in bulk or upon clients requirements
Cantilever Rack · Warehouse Storage Rack · Made In China

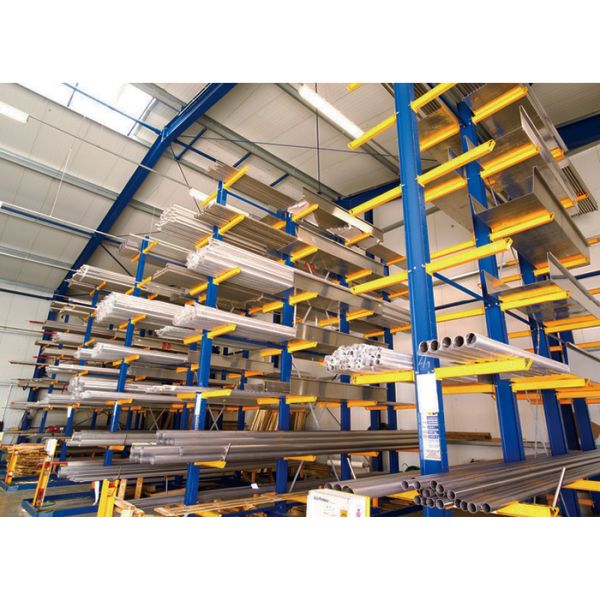

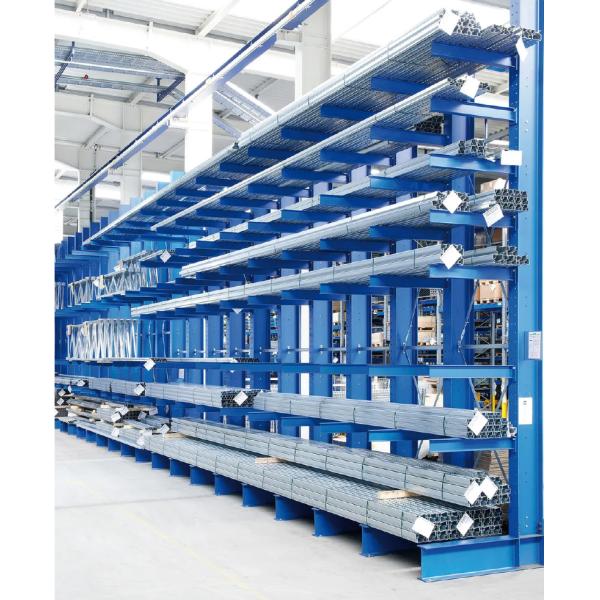

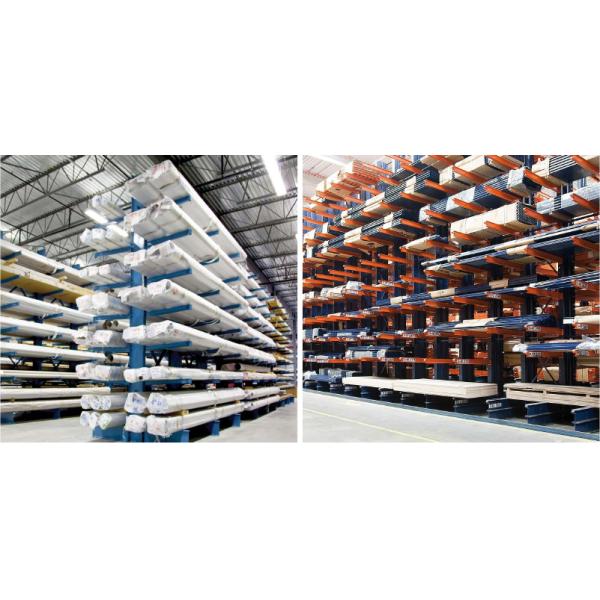

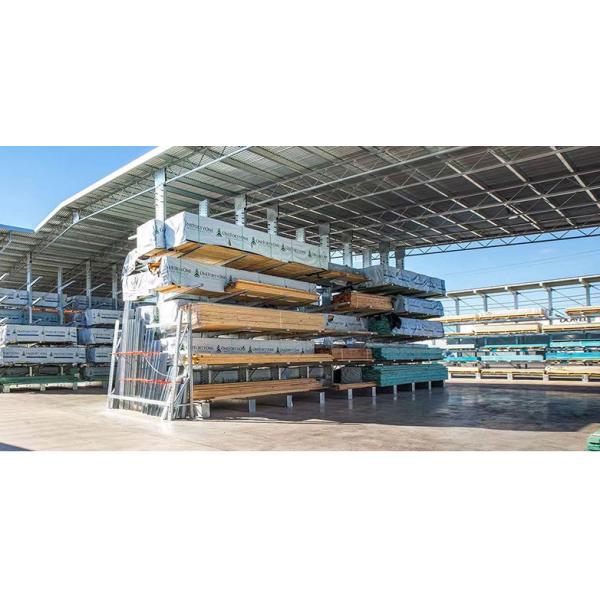

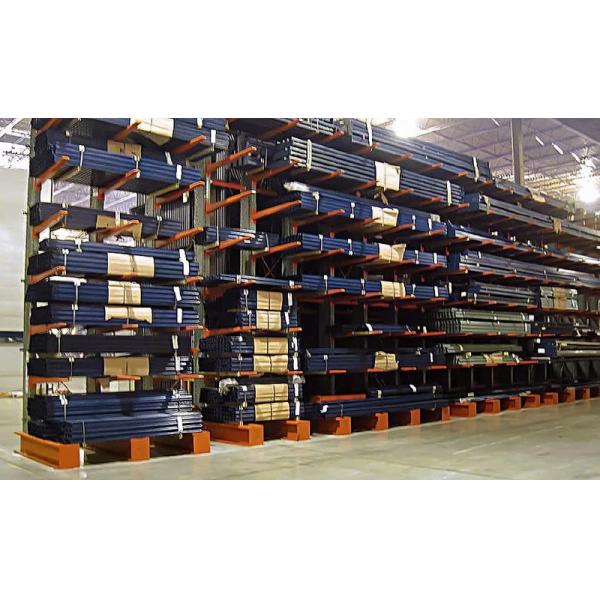

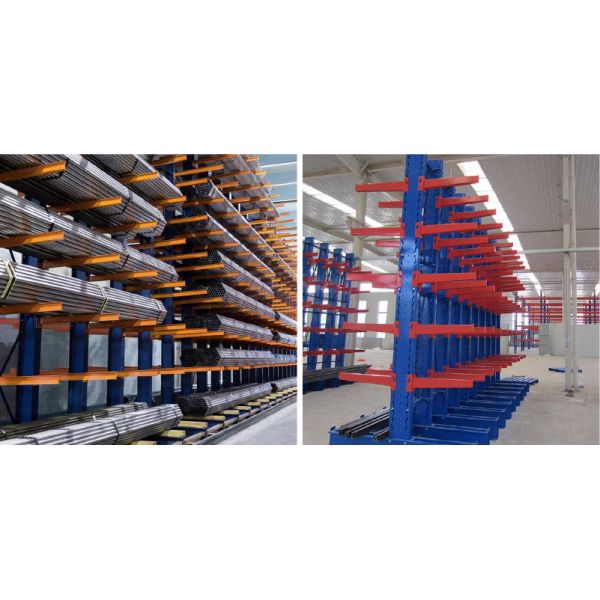

CASE
—
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
- The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
- The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
- Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
- Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
